Pharmaceutical Leaflet Buckle Folding Machine Automatic With Jam Detection Outsert

Product Categories
Dongguan Aoqi Packing Machine Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Pharmaceutical Leaflet Buckle Folding Machine Automatic With Jam Detection Outsert

Brand Name : AOQI

Model Number : Pharmaceutical Outsert Systems

Certification : CE Certificate

Place of Origin : Dongguan City , China

MOQ : 1

Price : Negotiated

Payment Terms : T/T

Supply Ability : 10 lines per year

Delivery Time : 45-60 days

Packaging Details : Export wooden box

Model Name : Pharmaceutical Leaflet Folding Machine

First station : 480TS/600TS

Max. width : 480mm / 600mm

Min. paper format : 70*120mm

Second Station : 4 or 6 buckle Plates

Driving type : Belt driving

Functions : paper ejection ; ultrosonic double sheet ; camera inspection

Optional devices : parallel knife , pressing unit , vertical stacker , labeling machine

suitable industry : printing , cosmetics, electricity , pharmaceutical and so on

Product certificate : CE Certificate

Contact Now

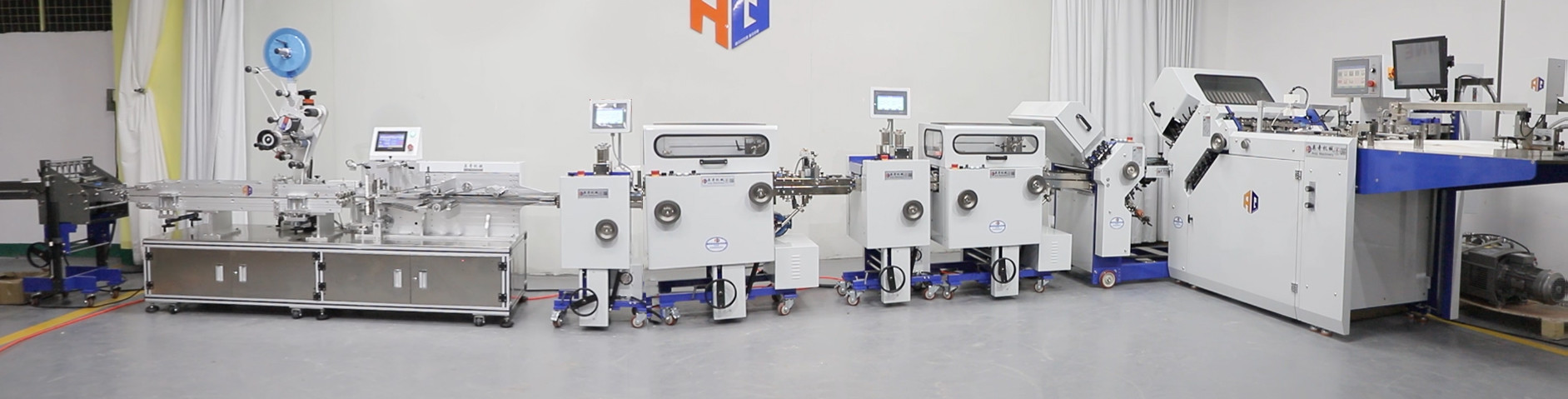

Automatic 480TS/600TS Jam Detection Outsert Pharmaceutical Leaflet Folding Machine

This Flat pile feeder folding outsert system is designed to handle light-weight pharmacetical and miniature leaflet folding . In order to meet different cutomers' needs , we have 480TS and 600TS for the first station . Different width format with 6-20 plates . The second station is to handle the thick and small-size leaflets with 4 or 6 buckle plates.

Pharmaceutical Leaflet Buckle Folding Machine Automatic With Jam Detection Outsert

Station I :

480TS Paper Folder --- 480mm width format with 6-20 plates

600TS Paper Folder --- 600mm width format with 6-18 plates

Station II is to handle the thick and small-size leaflets with 4 or 6 plates.

Pharmaceutical Leaflet Buckle Folding Machine Automatic With Jam Detection Outsert

Pharmaceutical Leaflet Buckle Folding Machine Automatic With Jam Detection Outsert

Max. infeed width : 160mm

Product Max. thickness : 10mm

Max. speed : 60m/min

voltage: 380V,075KW

Dimension(L*W*H) : 600*560*(1150-1250)mm

Weight : 185KG

Pharmaceutical Leaflet Buckle Folding Machine Automatic With Jam Detection Outsert

Max. infeed size:140*160(L*W)

Min. infeed size : 70*25(L*W)

Max. thickness : 12mm

Speed: 90m/min

Pharmaceutical Leaflet Buckle Folding Machine Automatic With Jam Detection Outsert

Labeling Process: Product entry -- Conveying ---Product inspection---Flip Product----Conveying ---Labeling

Parameters :

Parameters of labeling machine
Label Accuracy ±2mm(not including error of products and labels
Labeling Speed 80-90pcs/min( related to the size of products and labels)
Label Length 25-35 mm
Label width 15-20 mm
Product Size L 50~200mm
W 30~45mm
H 2~10mm
Dimension(L*W*H) 2600mm*750mm*1750mm
Voltage 220V/50HZ
Net weight 457.5kg
Label material Avery brand , model BW777

Pharmaceutical Leaflet Buckle Folding Machine Automatic With Jam Detection Outsert

Pharmaceutical Leaflet Buckle Folding Machine Automatic With Jam Detection Outsert
